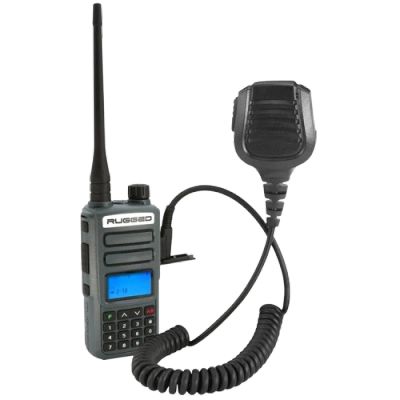

The Rugged GMR2 PLUS with Hand Mic is a compact GMRS/FRS handheld two-way radio intended for off-road use, outdoor recreation, family communications, and vehicle-to-vehicle communication. It provides 22 standard GMRS channels, a rechargeable lithium-ion battery, weather reception, FM radio, and a waterproof external speaker/microphone in this particular package.

The radio uses an optimized transmitter and tuned antenna for improved communication performance, while selectable lower-power operation can help extend battery life.

Key Specifications

• Radio service: GMRS / FRS
• Transmit power: 2 W maximum
• GMRS channels: 22
• Channel positions: 30
• Transmit frequency: 462.5625–467.725 MHz
• VHF receive: 136–174 MHz
• UHF receive: 400–480 MHz
• VHF/UHF transmission: No — receive/listen only
• Modulation: FM
• Battery: Rechargeable Li-ion
• Operating voltage: 7.4 VDC
• Operating temperature: −10°C to +50°C
• Dimensions: 116 × 53 × 36 mm
• Weight: 106 g / 3.74 oz, including battery & antenna
• Receiver sensitivity: ≤0.2 μV
• Receiver bandwidth: ≤16 kHz
• Receiver selectivity: ≥65 dB
• Audio output: >500 mW
• Audio distortion: ≤10%
• Frequency stability: 5 ppm
• Maximum deviation: ±5 kHz
• Standby current: 60 mA
• Working current: 250 mAT
• ransmit current: ≤1.6 A
• Certification: FCC / CE

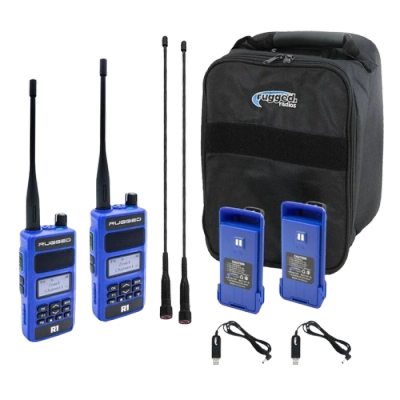

The Rugged R1 Ready Pack (SKU R1-READY-PACK) is a two-radio professional business-band handheld communication kit designed for off-road racing, chase crews, pit crews, work crews, industrial applications, and general team communications.

The major advantage over the analog-only V3 Ready Pack is that the R1 supports both analog and DMR digital communications. It is also a dual-band VHF/UHF radio, allowing it to communicate with compatible business-band radios on either band.

Key Specifications

• Radio quantity: 2 R1 handheld radios
• Radio type: Business-band handheld
• Modes: DMR Digital + Analog
• Frequency bands: Dual-band VHF/UHF
• Transmitter power: 5 watts maximum
• Channel capacity: 1,024 channels
• Zone capacity: 250 zones
• Battery: Rechargeable Li-ion
• Display: Large LED display
• Digital capability: DMR
• Digital messaging: Text messaging on digital channels
• Monitoring: Dual-monitor — listen to two channels
• Antenna: Performance-tuned; Ready Pack includes XL antennas
• Charging: USB charging + AC charging blocks
• Accessory connector: 2-pin
• Flashlight: Built-in safety flashlight
• FM radio: One-touch FM radio
• Controls: Keypad with lock function
• Certification: FCC and CE
• Programming: Custom programming requires software
• License: Business-band license required

What's Included:

The Ready Pack is substantially more than a basic two-radio package:

• 2 × Rugged R1 handheld radios
• 2 × standard R1 batteries
• 2 × XL batteries — advertised as providing approximately double the battery life of the standard batteries
• 2 × XL/long-range antennas — advertised as providing up to 30% more range
• 2 × AC charging blocks
• 2 × USB charging cables
• 1 × storage bag
• 1 × bag identification kit

Compatibility:

Rugged states that the R1 works with compatible VHF/UHF business-band radios and DMR radios. Listed examples include:

• Rugged R1
• Rugged V3
• RDM-DB
• M1
• RDH-X
• RM60
• RH5R
• RDH16
• Compatible Icom
• Compatible Motorola
• Compatible Kenwood business-band radios

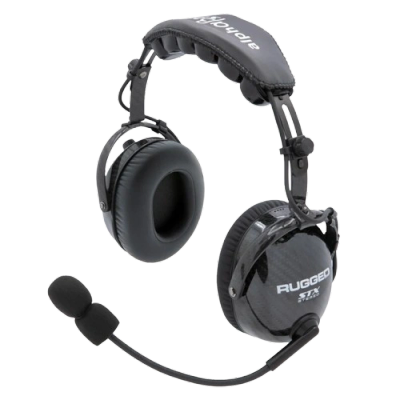

The Rugged Radios AlphaBass Carbon Fiber Stereo Headset is a premium off-road intercom headset designed for users who want high-fidelity stereo music, enhanced bass, clear two-way communications, and long-ride comfort. It is available in both Over-the-Head (OTH) and Behind-the-Head (BTH) configurations. The headset uses a lightweight carbon-fiber construction and includes both stereo and standard off-road intercom adapters.

Key Specifications

• Headset style: Over-the-Head or Behind-the-Head
• Audio: High-fidelity true stereo
• Speakers: Amplified full-range speakers + dedicated bass speaker
• Bass control: Adjustable
• Volume control: Adjustable
• Construction: Lightweight real carbon fiber
• Microphone: M101 dynamic noise-cancelling microphone
• Mic boom: Flexible/adjustable boom
• Ear seals: Breathable leather
• Head pad: Deluxe comfort head pad
• Headband: Adjustable stainless steel
• Connection: Universal 5-pin headset connection
• Cable: Detachable coil cable
• Charging: USB-C charging
• Intercom compatibility: Rugged STX Stereo and Rugged Wired/Offroad systems
• Other compatibility: PCI Trax with appropriate cable
• Controls: Volume + bass
• Power: Internal rechargeable battery for bass/audio electronics

What's Included:

The standard package includes:

• 1 × AlphaBass Carbon Fiber Stereo Headset
• 1 × 5-pin headset cable
• 1 × STX Stereo 5-pin adapter
• 1 × OFFROAD/Rugged Wired 5-pin adapter
• 1 × USB charging cable
• 1 × headset storage bag

Compatibility:

The AlphaBass is compatible with Rugged Radios STX Stereo intercoms and Rugged Wired/Offroad intercoms. Rugged also lists compatibility with other systems such as PCI Trax, provided the appropriate intercom cable is used.

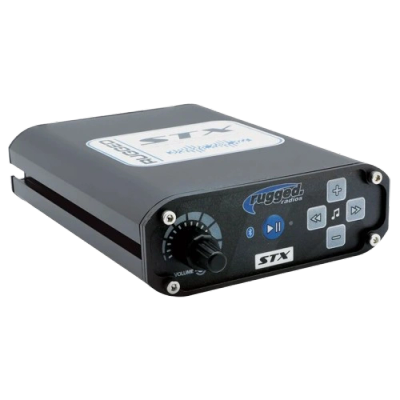

The Rugged Radios STX STEREO High Fidelity Intercom is a premium vehicle intercom designed for 2–5-seat UTVs, off-road vehicles, race vehicles, and other high-noise environments. It combines clear driver/passenger communications with true high-fidelity stereo music, Bluetooth connectivity, phone-call control, automatic music dimming, and two-way radio integration.

Key Specifications

• Application: Vehicle/UTV stereo intercom
• Vehicle capacity: 2–5 seats
• Audio: High-fidelity true stereo
• Bluetooth: Enhanced Bluetooth
• Bluetooth music: Yes
• Phone calls: Yes
• Music controls: Play/pause, volume, track forward/back
• Intercom: Driver/passenger communication
• VOX: Adjustable voice activation
• Music dimming: Automatic when VOX activates
• Two-way radio: Radio-ready
• Equalizer: Tunable EQ app for iOS/Android
• Rear-seat isolation: Yes
• AUX output: 3.5 mm stereo output
• Dimensions: 4.5"W × 1.5"H × 6"D
• Power: 12V vehicle electrical system
• Mounting: Universal bracket; vehicle-specific mounts available

Compatibility:

The STX is designed to work with:

• Rugged Radios STX STEREO headsets
• Rugged Radios STX STEREO helmet kits
• Rugged STX STEREO cables
• Compatible stereo headsets/helmet kits such as PCI Trax
• Conventional Rugged OFFROAD wired headsets using appropriate adapters

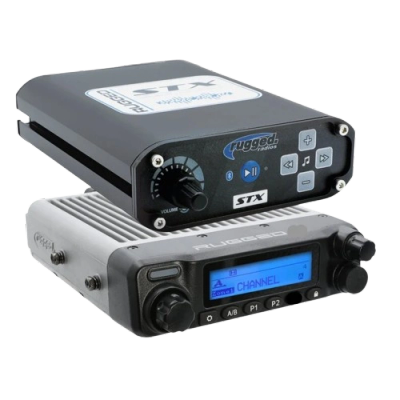

The Rugged Radios STX STEREO Complete Master Communication Kit is an all-in-one off-road communication system combining the STX high-fidelity stereo intercom with a long-range mobile two-way radio. It is designed for UTVs, side-by-sides, race vehicles, prerunners, and other high-noise vehicles where you need driver/passenger intercom, Bluetooth music, and vehicle-to-vehicle radio communication in one system.

Key Specifications

• Intercom: STX STEREO High Fidelity Intercom
• Radio options: M1 VHF Business Band or G1 GMRS
• Intercom capacity: 2-person configuration
• Bluetooth: Yes
• Bluetooth music: High-fidelity stereo
• Phone connectivity: Yes
• VOX: Yes, with automatic music dimming
• Two-way radio: Yes
• Radio housing: IP67 waterproof: PTT controls: Driver steering-wheel PTT + passenger grab-bar PTT
• Antenna coax: 15 ft.
• Coax connector/mount: 3/8" NMO mount
• Antenna: POINT5 or VHF 1/2-wave long-range antenna
• Electrical noise protection: Active filter included
• Intercom cables: 2
• Headsets: Not included
• Helmet wiring kits: Not included
• Mount: Vehicle-specific mount not included in universal kit
• Current listed price: $1,386.40 with M1 option at time of checking

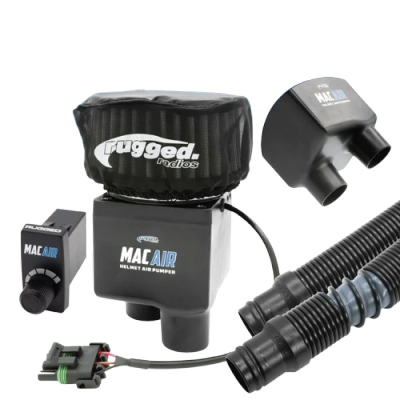

The Rugged Radios MAC Air 2-Person Air Pumper Bundle is a high-output fresh-air helmet ventilation system for two people, designed for UTVs, off-road vehicles, desert racing, dune riding, and short-course racing. It forces filtered outside air through two hoses and into compatible helmets, helping reduce heat, dust exposure, and rider fatigue.

Key Specifications

• Capacity: 2 people / 2 helmets
• Pumper type: High-volume, high-static-pressure helmet air pumper
• Housing: Injection-molded ABS polymer
• Fan/motor: High-static-pressure fan; high-duty-cycle motor
• Air outlets: 2
• Filtration: Dual-stage washable filtration
• Pre-filter: Washable dry-media air pre-filter
• Intermediate filter: Washable foam filter
• Dust protection: Particulate pre-filter wrap
• Airflow control: Rocker Switch Variable Speed Controller (VSC)
• Hoses: 2 lightweight expandable pumper hoses
• Hose compatibility: Threaded cuffs also fit MagLock Helmet Air Kits
• Power cord: 12 ft.
• Power connector: Waterproof
• Mount: Universal Bar Mount included
• Helmet compatibility: Requires compatible helmet air inlet/air kit
• Primary applications: UTV, SxS, off-road, desert racing, dunes, short-course racing

What's Included:

The MAC-2P-KIT includes:

• 1 × MAC Air 2-person helmet pumper
• 2 × expandable pumper hoses
• 1 × Rocker Switch Variable Speed Controller
• 1 × washable dry-media air pre-filter
• 1 × washable foam intermediate filter
• 1 × particulate pre-filter wrap
• 1 × 12-foot power cord
• 1 × waterproof power connector
• 1 × Universal Bar Mount

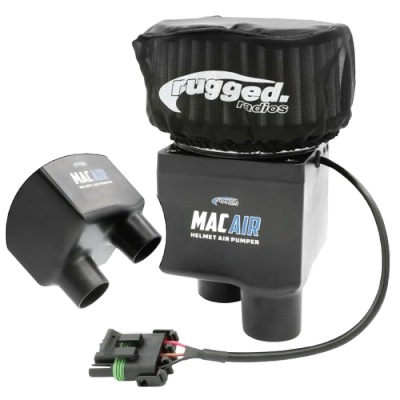

The Rugged Radios MAC Air 2-Person Helmet Air Pumper is a high-volume, high-static-pressure fresh-air helmet ventilation system for two people. It is designed for UTVs, side-by-sides, desert racing, dune riding, prerunners, and short-course racing. The pumper draws outside air through its filtration system and delivers pressurized air to two helmets, helping keep occupants cooler while reducing dust entering the helmet.

Key Specifications

• Type: Pumper only
• Helmet capacity: 2 people
• Helmet outlets: 2
• Housing: Injection-molded ABS polymer
• Air system: High-volume, high-static-pressure fan
• Motor: High-duty-cycle-life motor
• Filtration:Dual filtering system
• Primary filter: Washable dry-media air pre-filter
• Secondary filter: Washable foam intermediate filter
• Additional protection: Particulate pre-filter wrap
• Power cord: 12 ft.
• Power connector: Waterproof
• Hoses: Not included
• Variable Speed Controller: Not included
• Mounting hardware: Not included
• Helmet: Not included

What's Included:

The Pumper Only package includes:

• 1 × MAC Air 2-Person Helmet Air Pumper
• 1 × washable dry-media air pre-filter
• 1 × washable foam intermediate filter
• 1 × particulate pre-filter wrap
• 1 × 12-ft. power cord

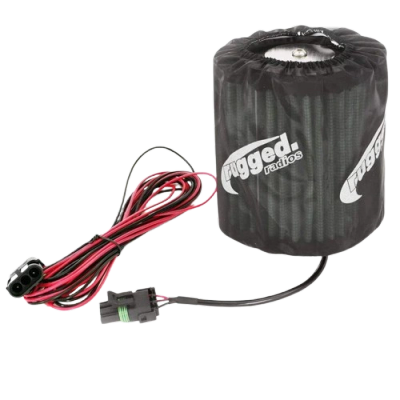

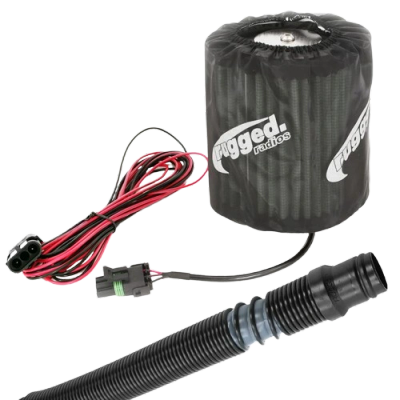

The Rugged Radios MAC-1X Single Person High Output Helmet Air Pumper Bundle is a compact, high-output fresh-air helmet ventilation system for one person. It is designed for UTVs, off-road vehicles, prerunners, desert racing, dunes, and other dusty or hot environments.

The MAC-1X uses a powerful single motor positioned within the filter assembly to keep the overall unit compact while delivering pressurized, filtered air directly to a helmet. The bundle adds the hose and power components needed to connect the pumper to a compatible helmet.

Key Specifications

• Capacity: 1 person / 1 helmet
• Helmet outlets: 1
• Weight: 1.65 lb.
• Dimensions: 6" T × 4.5" W × 4.5" D
• Construction: 6061 billet alloy
• Motor: High-duty-cycle-life motor
• Air filtration: Washable dry-media air filter
• Pre-filter: Outerwear particulate pre-filter wrap
• Current draw: Low
• Power connector: Waterproof
• Wiring harness: Waterproof
• Power cord: 12 ft.
• Included hose: MAC-X Hose
• Hose length: Expands from 2–6 ft.
• Variable speed control: Optional, not included
• Mounting hardware: Sold separately

What's Included:

The current bundle includes:

• 1 × MAC-1X Helmet Air Pumper
• 1 × MAC-X expandable hose
  • 2–6 ft. adjustable length
• 1 × 12-ft. power cord
• Waterproof power connector/wiring harness
• Washable dry-media air filter
• Outerwear particulate pre-filter wrap

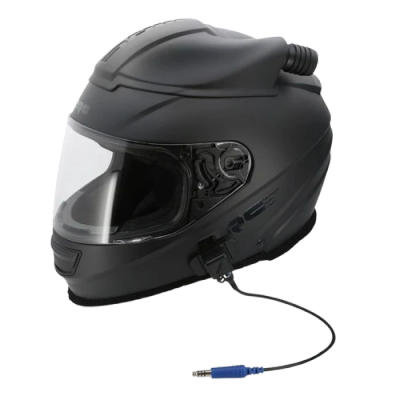

The Rugged Radios MRC Stage One Mid Air Pumper Prerunner Helmet (SKU: MRC-HK-XS-MD) is a recreational forced-air off-road helmet designed for UTVs, side-by-sides, prerunners, sand rails, and other off-road vehicles. Its Mid-Air forced-air inlet is positioned lower than a traditional top-air inlet, providing additional headroom and reducing the chance of the air inlet contacting the vehicle roof or cage.

This particular version comes pre-wired with a Rugged Radios helmet communications kit that works with both OFFROAD and STX STEREO intercom cables, making it a versatile choice if you want both helmet ventilation and communications/music capability.

Key Specifications

• Helmet type: UTV / recreational forced-air helmet
• Air system: Mid-Air forced-air inlet
• Construction: Lightweight polycarbonate / ABS shell
• Weight: Approximately 3.25–3.5 lb.
• Certification: DOT Certified
• Communication wiring: Rugged Radios helmet kit
• Cable compatibility: OFFROAD and STX STEREO
• Stereo compatibility: Rugged STX STEREO intercom and cables
• Other stereo compatibility: PCI Trax and other compatible stereo intercom systems
• Dust protection: Removable breathable dust skirt
• Visor: Anti-fog, anti-scratch, UV-protected
• Shield attachment: Pop Lock tool-free system
• Liner: Removable, washable, antimicrobial comfort liner
• Sizing: Multi-fit sizing using interchangeable cheek/crown pads
• Intended use: Recreational off-road / UTV / prerunner
• Race use: Not intended for race use

What's Included:

The package includes:

• 1 × MRC Stage One Mid Air Pumper Helmet
• 1 × Rugged Radios helmet wiring kit
• Wiring compatible with OFFROAD and STX STEREO intercom cables
• 1 × removable dust skirt
• Appropriate interchangeable cheek/crown pads for the selected size range
